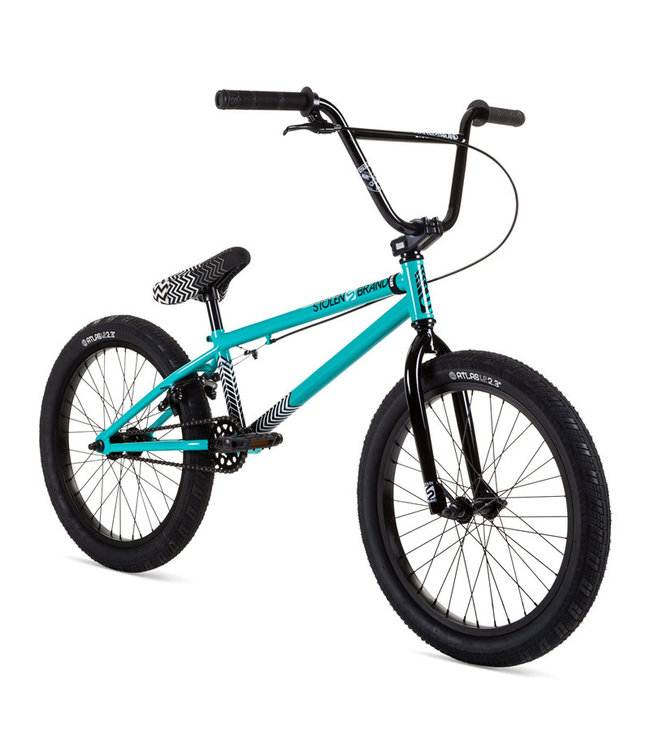

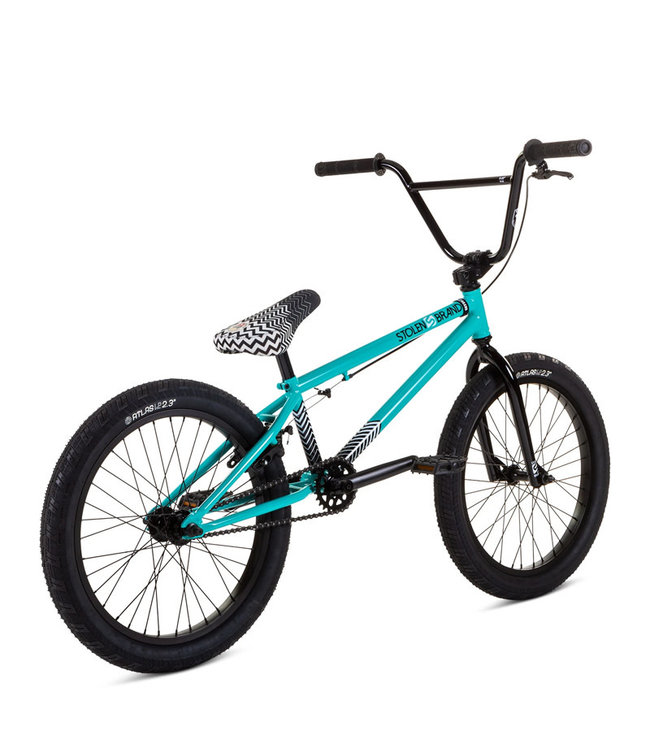

STOLEN COMPACT (19.25" TT) 2021 (CARRIBEAN GREEN)

Formerly called the Casino XS, the Compact is meant for smaller riders who want the upgradeability of a 20″ but the riding size of an 18″ bike. Designed to ride like a Pro bike on an Am budget. We make this bike in Taiwan to keep the quality high. For 2020 we upgraded to the after-market Fiction Atlas tires.

DETAILED SPECIFICATIONS

Frame: Hand-welded 1020 Hi-Ten Steel tubes, standard headtube, mid bb shell, top & down tube gussets,
Fork: Tapered legs w/ One-piece steerer w/ Compressor top-cap
Bars: Tallboy 2-piece, HiTen Steel, 8.75" rise
Grips: Stolen Loot 160mm w/ Stolen Vortex rubber barends
Stem: Fiction Spartan XS top-load, 40mm reach
Headset: Standard 1 1/8″ Threadless
Brake Lever: APSE Alloy w/ hinged clamp
Brakes: APSE U25 Alloy U-brake
Cranks: Fiction Zeus tubular 4130 ChroMoly arms, 8 Spline ChroMoly spindle, 165mm
Sprocket: Stolen 25T ChroMoly
Bottom Bracket: Sealed MID 19mm
Pedals: Nylon platforms w/ Boron spindles
Chain: Z-410, Black
Front Hub: Unsealed 3/8″ axle
Rear Hub: Rampage 6061 Alloy fully-sealed cassette w/ 14mm ChroMoly axle
Driver: 9t sealed, one-piece ChroMoly
Front Rim: Fiction Trojan Alloy (Single-wall)
Rear Rim: Fiction Trojan Alloy (Single-wall)

Seat: Fiction Brutus combo Seat w/ integrated post
Seat Post: 25.4mm Alloy 200mm length
Seat Clamp: Integrated
Front Tire: Fiction Atlas 2.30″
Rear Tire: Fiction Atlas 2.30″

Weight: Approx 25.65lbs

Colors: Caribbean Green

GEOMETRY

Toptube Length: 19.25"

Chainstay Length: 13.75"
Headtube Angle: 74.5°
Seattube Angle: 71°
Standover Height: 8.0″
Bottom Bracket Height: 11.75"
Fork Offset: 32mm
